PTFE(Teflon) Parts
Customizable PTFE Rods for Advanced Industrial Applications
Item Number : PL-03
Price varies based on specs and customizations
- Material
- PTFE
- Diameter
- 5~200mm
Shipping:
Contact us to get shipping details Enjoy On-time Dispatch Guarantee.
Why Choose Us
Easy ordering process, quality products, and dedicated support for your business success.
Introduction

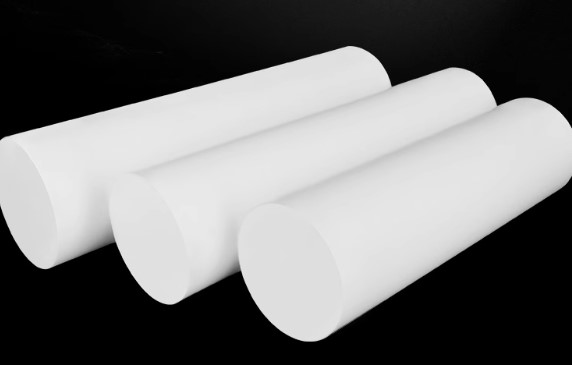

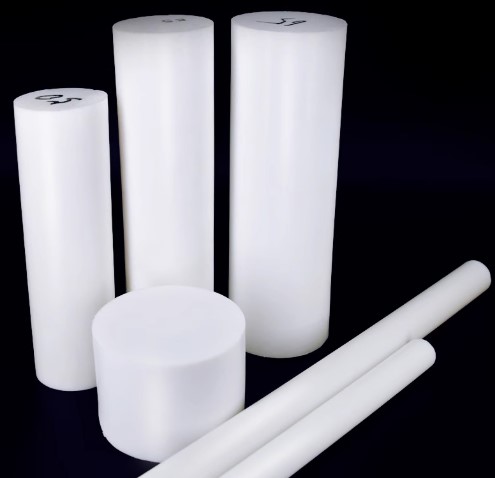

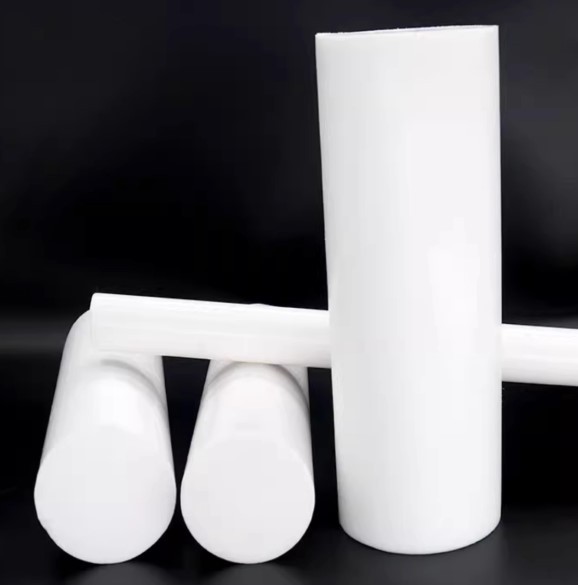

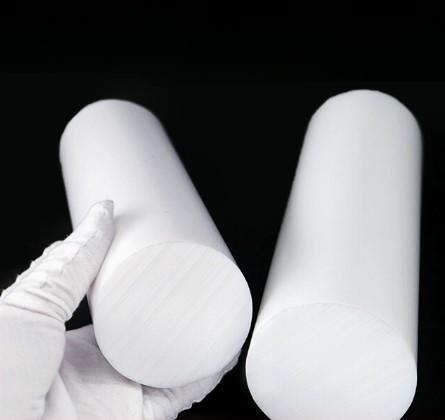

Our solid Polytetrafluoroethylene (PTFE) rods serve as a premium raw material for machining high-performance components. These versatile rods, known commercially as Teflon®, provide an ideal foundation for creating custom parts designed to operate in the most demanding chemical, thermal, and electrical environments. Manufactured to precise standards, our PTFE rods offer a consistent, high-purity material ready for your unique manufacturing requirements.
Key Advantages and Features
PTFE is a fluoropolymer with a unique combination of properties that make it an indispensable material across numerous industries.
- Exceptional Chemical Resistance: Virtually inert to almost all industrial chemicals, acids, and bases, making it perfect for components in corrosive environments like chemical processing and laboratories.
- Wide Operating Temperature Range: Maintains its excellent properties over a broad temperature spectrum, from cryogenic levels up to 260°C (500°F), with a high softening temperature.
- Extremely Low Coefficient of Friction: With one of the lowest friction values of any solid material, it is an ideal choice for creating self-lubricating bearings, seals, and low-friction linings.
- Excellent Electrical Insulator: Possesses high dielectric strength and a low dissipation factor, making it a superior material for electrical insulators, connectors, and cable components.
- Hydrophobic and Easy to Clean: PTFE is non-wetting and resists adhesion, which is crucial for applications in medical, food production, and laboratory settings where purity and cleanliness are paramount.
Detail & Parts
Technical Specifications
| Property | Unit | Standard Value |
|---|---|---|
| Specific Gravity | g/cm³ | 2.14–2.3 |
| Softening Temperature | °C | 317–327 |
| Tensile Strength | MPa | 13.72–34.3 |
| Tensile Strength | kg/cm² | 280–352 |
| Elongation | % | 150–400 |
| Compressive Strength | MPa | 12kg/cm2 |
| Impact Strength (Izod) | Kg-Cm/Cm² | 6.4mg/1000 cycles (Typo likely, consult standard) |
| Shore Hardness | - | D50–55 |
| Flexural Modulus | 10³ Kg/cm² | 3.5–6.3 |
| Flexural Modulus | 10³ Kg/cm² | 4.0 |
| Dynamic Coefficient of Friction | - | 0.1 |
Applications and Industries Served
Our PTFE rods are the starting point for custom-machined components used in a wide array of critical applications:
- Semiconductor: Seals, gaskets, and liners for chemical handling systems.
- Medical & Laboratory: Non-reactive laboratory ware, fittings, stopcocks, and components for medical devices.
- Aerospace & Automotive: High-performance seals, bushings, bearings, and fuel-resistant parts.
- Industrial & Chemical Processing: Gaskets, valve seats, pump components, and tank linings.
- Electronics: High-frequency insulators, connectors, and terminal insulation.
- Food & Beverage: Non-stick surfaces, conveyor components, and seals that comply with food-grade standards.
Your Partner in Precision Manufacturing
Your specific application deserves a tailored solution. We specialize in transforming these high-performance PTFE rods into precision-machined components that meet your exact specifications. Our capabilities support your entire project lifecycle, from initial prototypes for testing and validation to large-volume production runs. By partnering with us, you gain access to manufacturing expertise that ensures your final components deliver optimized performance, reliability, and value.
Your specific application deserves a tailored solution. We specialize in transforming these high-performance PTFE rods into precision-machined components that meet your exact specifications. To discuss your project, from prototype to full-scale production, please contact our engineering team to start the conversation.
