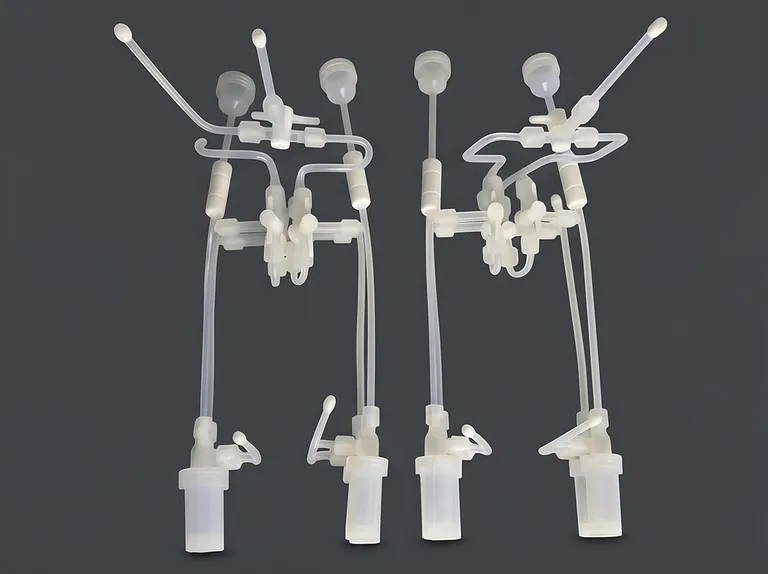

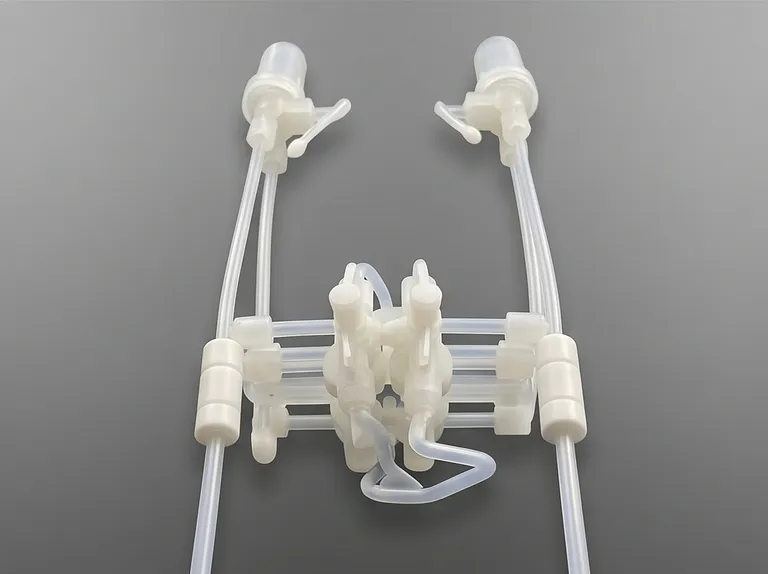

High Purity PFA Nitrogen Purge System Corrosion Resistant 4 and 6 Position Evaporation Setup Customizable Laboratory Trace Analysis Equipment

Product Overview

This high-purity nitrogen purge system represents the pinnacle of sample preparation technology for laboratories engaged in ultra-trace metal analysis and the processing of highly aggressive chemicals. Constructed entirely from premium-grade Perfluoroalkoxy (PFA), this system provides an inert environment that prevents sample contamination while offering unparalleled resistance to strong acids, including hydrofluoric acid and aqua regia. The equipment is specifically engineered to facilitate controlled evaporation and gas-phase displacement, ensuring that volatile components are efficiently removed without compromising the integrity of the remaining sample.

Designed for demanding industrial and research environments, the unit is widely utilized in semiconductor manufacturing, environmental monitoring, and geochemical analysis. The primary value proposition lies in its ability to replace traditional glass or quartz setups, which are prone to leaching and chemical attack. By utilizing a fully fluoropolymer-based fluid path, this system ensures that even the most sensitive trace analysis workflows maintain the highest levels of purity and reproducibility. Whether used for the concentration of semiconductor-grade reagents or the preparation of environmental samples for ICP-MS, the equipment delivers consistent performance under continuous exposure to corrosive vapors.

Reliability is at the core of this system's design. Every component, from the purge bottles to the precision-machined valves, is crafted to withstand long-term operation in harsh chemical hoods. The robustness of the PFA material ensures that the unit does not become brittle or degrade over time, even when subjected to thermal cycling or prolonged contact with organic solvents. Procurement teams and laboratory managers can rely on this unit as a long-term investment that reduces the frequency of equipment replacement and minimizes the risk of experimental failure due to material-induced contamination.

Key Features

• Ultra-High Purity PFA Construction: The entire wetted path is fabricated from high-purity PFA, which is virtually free of metal ions and organic additives, making it the ideal choice for trace-level detection and semiconductor applications.
• Superior Chemical Inertness: This system exhibits near-universal resistance to aggressive chemicals, including concentrated sulfuric acid, nitric acid, and hydrofluoric acid, ensuring the hardware remains unaffected by the samples it processes.
• Precision CNC-Machined Valves: Integrated valves are crafted through high-precision CNC machining to provide fine control over gas flow rates, allowing for delicate nitrogen purging without the risk of sample splashing or cross-contamination.
• Modular and Customizable Layouts: The unit is available in standard 4-position and 6-position configurations, but the design is fully customizable to meet specific laboratory space requirements and sample throughput needs.
• Non-Stick Surface Properties: The smooth, low-energy interior walls of the purge bottles and tubing prevent particle deposition and facilitate easy cleaning, which is critical for maintaining zero-carryover between different sample batches.
• Exceptional Thermal Stability: The equipment maintains its mechanical integrity across a wide temperature range, allowing it to be used in heated evaporation processes without deformation or loss of sealing performance.
• Integrated Gas Distribution Manifold: A centralized manifold system ensures equal pressure distribution across all purge positions, delivering uniform evaporation rates and consistent results across multiple samples simultaneously.
• Leak-Proof Sealing Technology: Utilizing advanced PFA fittings and threaded connections, the system provides a hermetically sealed environment that prevents the escape of hazardous vapors and protects the laboratory environment.
• High Transparency for Monitoring: Unlike opaque fluoropolymers, the PFA used in this system offers excellent clarity, allowing researchers to monitor fluid levels and reaction states in real-time without interrupting the purge process.

Applications

Technical Specifications

Why Choose This Product

• Unmatched Material Purity: Our focus on high-performance fluoropolymers ensures that every component is optimized for trace-level analysis, providing the lowest possible detection limits by eliminating equipment-based interference.
• Engineered for Longevity: Unlike plastic or glass alternatives that fail under chemical stress, this PFA system is designed for years of continuous service in the most aggressive laboratory environments, offering a lower total cost of ownership.
• Bespoke Manufacturing Capabilities: Every laboratory has unique requirements. We specialize in custom CNC fabrication, allowing us to modify the dimensions, port counts, and flow configurations of the unit to fit your specific workflow perfectly.
• Precision Fluid Control: The integration of high-quality PFA valves ensures that your gas flow is precise and repeatable, which is essential for delicate evaporation processes and maintaining sample consistency.
• Zero-Contamination Guarantee: From the raw material sourcing to the final CNC machining, our processes are designed to maintain the highest cleanliness standards, ensuring your high-purity reagents stay pure.

For laboratories requiring specialized configurations or specific material certifications, our engineering team is available to discuss custom designs. Contact us today for a technical consultation or a formal quotation on a system tailored to your requirements.
