PTFE(Teflon) Parts
Custom PTFE and Nitrile Diaphragm Pump Components for Demanding Applications
Item Number : PL-06
Price varies based on specs and customizations
- Material
- Nitrile (NBR), PTFE (Teflon)
- Outer Diameter (mm)
- 40~110
- Compatible Pump Models
- QBY/QBK-25/40, QBY/QBK-50/65, QBY/QBK-80/100
Shipping:
Contact us to get shipping details Enjoy On-time Dispatch Guarantee.
Why Choose Us
Easy ordering process, quality products, and dedicated support for your business success.
Product Introduction

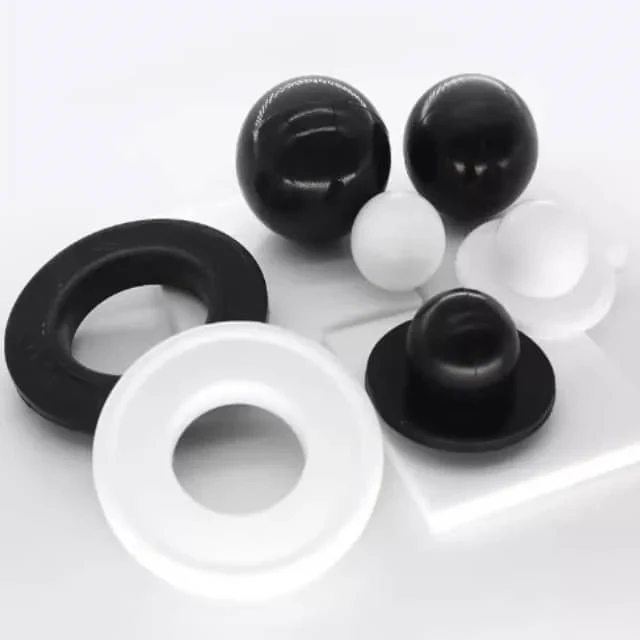

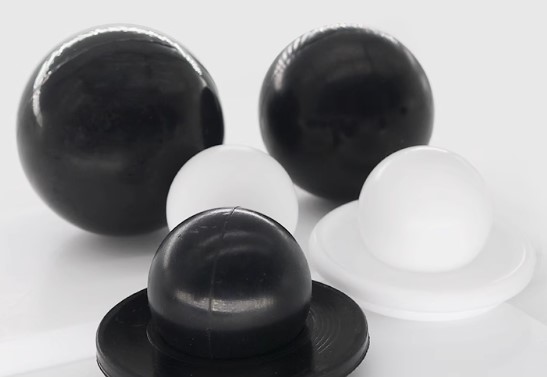

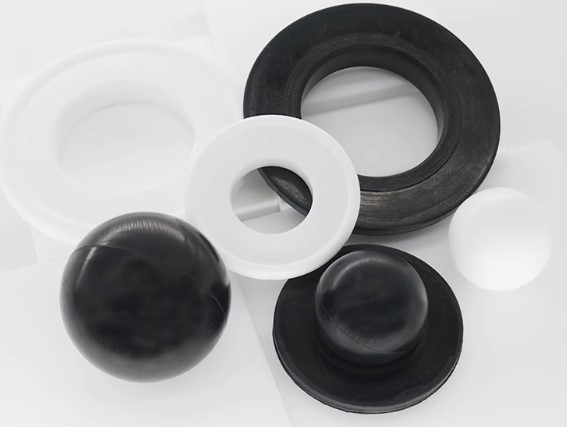

KINTEK offers a comprehensive range of high-performance replacement balls and seats for QBY/QBK series air-operated diaphragm pumps. Engineered from premium-grade Polytetrafluoroethylene (PTFE) and Nitrile rubber, these components are designed to deliver exceptional reliability, chemical compatibility, and efficiency in a wide array of industrial and high-purity environments. As shown in the images, we provide both the balls and their corresponding seats, ensuring a perfect fit and optimal pump performance.
Detail & Parts
Product Specifications
| Material | Item | Outer Diameter (mm) | Seat Platform Diameter (mm) | Compatible Pump Models |
|---|---|---|---|---|
| Nitrile (NBR) | Ball | 42 | N/A | QBY/QBK-25/40 |
| Ball | 62 | N/A | QBY/QBK-50/65 | |
| Ball | 70 | N/A | QBY/QBK-80/100 | |
| Ball Seat | 72 | 57 | QBY/QBK-25/40 | |
| Ball Seat | 98 | 84 | QBY/QBK-50/65 | |
| Ball Seat | 108 | 94 | QBY/QBK-80/100 | |
| PTFE (Teflon) | Ball | 40 | N/A | QBY/QBK-25/40 |
| Ball | 57 | N/A | QBY/QBK-50/65 | |
| Ball | 70 | N/A | QBY/QBK-80/100 | |
| Ball Seat | 68 | 57 | QBY/QBK-25/40 | |
| Ball Seat | 102 | 84 | QBY/QBK-50/65 | |
| Ball Seat | 110 | 94 | QBY/QBK-80/100 |
Your Partner in Precision and Performance
At KINTEK, we understand that pump reliability is critical to your operational success. Our value lies in providing precisely manufactured components that not only serve as direct replacements but often enhance the performance and longevity of your equipment. We specialize in custom manufacturing, allowing us to tailor solutions from prototyping to large-volume production. By partnering with us, you gain access to components that reduce downtime, improve efficiency, and are perfectly suited for your specific industry needs—from aerospace and electronics to critical chemical processing.
Ready to enhance the reliability and efficiency of your diaphragm pumps? Whether you require standard replacement parts for your QBY/QBK pumps or a custom-engineered component for a unique application, our team is here to help. To discuss your specific needs and receive a tailored solution, please contact our specialists through our inquiry form.
