What Are The Physical Characteristics Of Ptfe O-Rings? The Ultimate Guide To Ptfe Seal Properties

At their core, Polytetrafluoroethylene (PTFE) O-rings are defined by a unique set of physical properties. They are white, have a standard round profile, and possess a hardness of 60-65 Shore D. This places them in the category of a hard plastic rather than a soft elastomer, with a tensile strength between 3625-4496 psi and a minimum elongation of 300-400%.

The fundamental takeaway is that PTFE is not a conventional rubber. Its physical characteristics make it a specialized sealing material chosen for its extreme resilience to chemicals and temperature, not for its elasticity or flexibility.

What are the physical characteristics of PTFE O-rings? The Ultimate Guide to PTFE Seal Properties

Core Mechanical and Physical Properties

Understanding the base numbers is the first step in evaluating if a PTFE O-ring is suitable for your application. These properties dictate its behavior under physical stress.

Hardness (Durometer)

A PTFE O-ring has a durometer of 60-65 on the Shore D scale.

This is a critical distinction. Most common O-rings (like Nitrile or Viton) are measured on the Shore A scale and are much softer. Shore D is used for hard plastics, indicating that PTFE is a rigid material.

This high hardness contributes to its excellent abrasion and wear resistance.

Tensile Strength and Elongation

PTFE exhibits a high tensile strength, ranging from 3625 to 4496 psi. This measures the force required to pull the material apart.

Its elongation is between 300-400%. While this number seems high, its rigidity means it does not readily return to its original shape after being stretched, unlike a true elastomer.

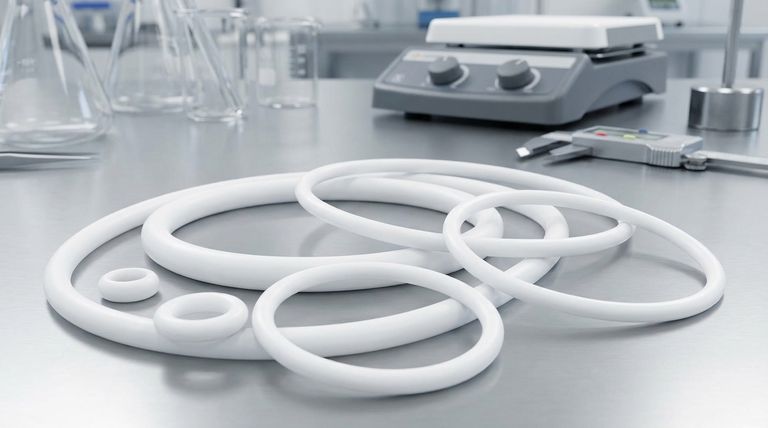

Color and Profile

Visually, PTFE O-rings are easily identified by their distinct solid white color.

They are manufactured with a standard round cross-section (profile), designed to fit into grooves and seal mating surfaces between parts like pipes and hoses.

Performance Characteristics in Application

The raw physical data translates directly into world-class performance in demanding environments. These characteristics are the reason engineers specify PTFE.

Unmatched Chemical Inertness

PTFE is prized for its universal resistance to most media. It is virtually inert when exposed to almost all common chemicals, acids, bases, and solvents.

This makes it the default choice for sealing systems that handle aggressive or corrosive fluids.

Extreme Temperature Tolerance

The operational temperature range for PTFE is exceptionally wide, functioning effectively from –200° C to +260° C (–328° F to +500° F).

This stability across extreme cold and high heat ensures reliable sealing where other materials would fail.

Low Friction and Non-Adhesive Surface

PTFE has one of the lowest coefficients of friction of any solid material. This creates an excellent non-stick, non-adhesive surface.

This property is ideal for dynamic applications with sliding parts, as it minimizes wear and energy loss.

Excellent Dielectric Properties

With superior electrical insulation capabilities, PTFE O-rings are highly effective at preventing electrical leakage.

This makes them suitable for use in sensitive electrical and electronic applications where isolating components is critical.

Understanding the Trade-offs

No material is perfect, and the primary limitation of PTFE stems directly from its strengths. Its rigidity and plastic-like nature create specific challenges.

Lack of Elastic Memory

Unlike rubber O-rings, PTFE has a very low compression set, meaning it does not readily spring back to its original shape after being compressed.

This lack of "memory" means it is not suitable for applications that require a seal to accommodate significant movement, vibration, or surface imperfections.

Installation Challenges

The material's stiffness can make installation difficult, especially on smaller diameters. It does not stretch easily over components.

Over-stretching a PTFE O-ring during installation can permanently deform it, compromising its ability to create a reliable seal.

Making the Right Choice for Your Application

To determine if PTFE is the correct material, evaluate your primary engineering goal.

If your primary focus is sealing against aggressive chemicals or extreme temperatures: PTFE is an excellent, and often necessary, choice due to its unmatched inertness and thermal stability.
If your primary focus is a dynamic application with sliding parts: The extremely low coefficient of friction makes PTFE a superior option for minimizing wear and friction.
If your primary focus is a standard application requiring flexibility and forgiveness: A traditional elastomeric O-ring, like Nitrile or Viton, is likely a more appropriate and cost-effective solution.

Ultimately, choosing a PTFE O-ring is a decision to prioritize chemical and thermal resilience above all else.

Summary Table:

Property	Value / Characteristic
Hardness (Durometer)	60-65 Shore D
Tensile Strength	3625 - 4496 psi
Elongation	300 - 400%
Color	Solid White
Profile	Standard Round Cross-Section
Temperature Range	-200°C to +260°C (-328°F to +500°F)
Key Performance	Extreme Chemical Inertness, Low Friction, Excellent Dielectric Properties
