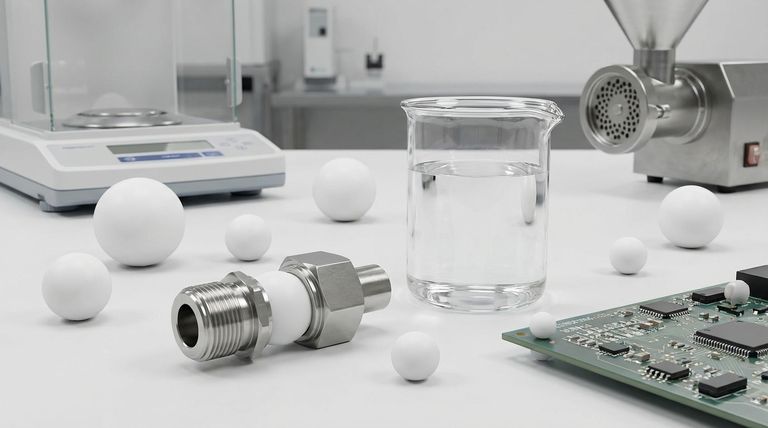

Virgin Teflon balls, made from pure polytetrafluoroethylene (PTFE), are versatile components prized for their unique combination of chemical inertness, thermal stability, and low friction. Their applications span industries from fluid handling to medical devices, leveraging properties like corrosion resistance, electrical insulation, and FDA-compliance for food contact. These lightweight, non-metallic spheres excel in environments where metal alternatives would fail due to corrosion or contamination risks.
Key Points Explained:
-
Fluid Handling Systems
-
Pump & Valve Components: Teflon balls serve as:
- Check valve seats in chemical processing pumps, preventing backflow while resisting acids/solvents
- Low-pressure ball valve cores for ultrapure water systems in semiconductor manufacturing
- Metering pump components handling aggressive media like hydrogen peroxide
- Advantages over metals:
- 50-70% lighter weight reduces inertial losses
- Zero galvanic corrosion in wet environments
- No particulate generation in sensitive systems
-
Pump & Valve Components: Teflon balls serve as:
-
Electrical Applications
- Used as:
- Insulating spacers in high-voltage equipment (up to 10kV/mm dielectric strength)
- Non-conductive bearings in generator brush assemblies
- RF waveguide components benefiting from low dielectric loss (tan δ < 0.0002)
- Critical properties:
- Flame resistance (UL94 V-0 rated)
- Stable capacitance across -200°C to +260°C
- Arc resistance >300 seconds
- Used as:
-
Sealing & Bushing Solutions
- Perform as:
- Self-lubricating bushings in food processing conveyors (FDA/USDA compliant)
- Low-friction seals in hydraulic systems (dynamic coefficient ~0.05-0.10)
- Wear pads for heavy machinery with 10x longer service life than nylon
- Design considerations:
- Cold flow resistance improved with glass/molybdenum fillers
- PV limit ~3,000 psi·ft/min for continuous operation
- Perform as:
-
Specialized Industrial Uses
- Chemical Processing: Liner balls for agitated tanks holding acids like 98% sulfuric
- Semiconductor: Wafer handling components in cleanrooms
- Aerospace: Non-magnetic instrument bearings
- Unique capabilities:
- Radiation resistance for nuclear applications
- Ultra-low outgassing in vacuum systems (<10^-6 torr)
-
Medical & Food Applications
- Medical device uses:
- Articulating surfaces in implant trial components
- Low-friction catheter guide elements
- Food grade applications:
- Bearing surfaces in dairy processing equipment
- FDA 21 CFR 177.1550 compliant for direct contact
- Sterilization advantages:
- Withstands 500+ autoclave cycles
- Gamma radiation stable
- Medical device uses:
-
Performance Characteristics
- Physical properties enabling these applications:
- Thermal expansion: 12x10^-5/°C (linear)
- Water absorption: <0.01% (24hr immersion)
- Coefficient of friction: 0.05-0.20 (dynamic)
- Comparative advantages:
- 3x more chemical resistant than PEEK
- 50% lower friction than acetal
- Physical properties enabling these applications:
For procurement specialists, specifying virgin (non-recycled) PTFE ensures consistent:
- Purity for sensitive applications
- Mechanical property reliability
- Regulatory compliance documentation
- Lot traceability for quality audits
The silent ubiquity of these components underscores their role as unsung heroes in mission-critical systems across industries.
Summary Table:
| Application Area | Key Uses | Notable Properties |
|---|---|---|
| Fluid Handling | Check valves, metering pumps | Chemical inertness, lightweight |
| Electrical | Insulators, RF components | High dielectric strength, flame resistance |
| Sealing/Bushing | Food conveyors, hydraulic seals | FDA compliant, low friction |
| Industrial | Semiconductor, aerospace | Radiation resistant, non-magnetic |
| Medical/Food | Implants, dairy equipment | Autoclavable, gamma stable |
Upgrade your systems with precision-engineered PTFE solutions
KINTEK's virgin Teflon balls deliver unmatched performance in corrosive, high-purity, and regulated environments. Our PTFE components are trusted by semiconductor fabs, medical device manufacturers, and chemical processors for:
- Consistent material purity (100% virgin PTFE)
- Custom geometries from prototypes to bulk orders
- Full documentation for regulatory compliance
Request a quote for application-specific solutions or discuss your project with our materials engineers today.
