At its core, modified Polytetrafluoroethylene (PTFE) is a family of materials designed to enhance the mechanical properties of standard PTFE. Common modifications include grades filled with glass, carbon, synthetic mica, or nanotubes, each engineered to improve characteristics like strength, wear resistance, and reduce deformation under load.
The central principle behind modified PTFE is strategic enhancement. By introducing specific fillers, you trade the absolute purity and some inherent properties of virgin PTFE to gain significant improvements in mechanical performance tailored for demanding applications.
The Foundation: Understanding Virgin PTFE
To appreciate the value of modified grades, one must first understand the benchmark properties of pure, or "virgin," PTFE. It is a unique material with a powerful combination of characteristics.
### Exceptional Chemical and Thermal Resistance
Virgin PTFE is renowned for its chemical inertness. It resists corrosion from strong acids, oxidizing agents, and a wide range of organic solvents.
This material also boasts an impressively wide operating temperature range, typically from -200°C to 260°C, with a melting point around 327°C.
### Extremely Low Coefficient of Friction
PTFE has one of the lowest coefficients of friction of any solid material, making it an ideal choice for applications where smooth, low-wear movement is critical.
### Superior Electrical Insulation
As a fluoropolymer, PTFE exhibits excellent dielectric properties. It is a superb electrical insulator, a quality that is crucial in many electronic and high-voltage applications.
Why Modify PTFE? Targeting Specific Performance Gains
While virgin PTFE is exceptional, its primary weakness is mechanical. It is a relatively soft material that can deform or "creep" under sustained pressure.
### The Core Limitation: Deformation Under Load
Pure PTFE can slowly change shape when a constant load is applied, especially at elevated temperatures. Fillers are added to create a more rigid internal structure that resists this deformation.
### Enhancing Strength and Durability
Additives like glass fibers or carbon significantly increase the compressive strength and overall durability of the material, making it suitable for more demanding structural or bearing applications.
### Reducing Friction and Wear
While pure PTFE has low friction, certain fillers can further reduce its wear rate and, in some cases, the coefficient of friction, extending the service life of components.
Common Modified PTFE Grades
The choice of filler directly dictates the new properties of the modified material.
### Glass-Filled PTFE
This is one of the most common modified grades. The addition of glass fibers dramatically improves wear resistance and compressive strength compared to virgin PTFE.
### Carbon-Filled PTFE
Adding carbon generally provides excellent wear resistance and good thermal conductivity. It also imparts some electrical conductivity, making it unsuitable for applications requiring high electrical insulation.
### Other Advanced Fillers
Fillers like synthetic mica and nanotubes are used in more specialized applications. They can be engineered to provide a unique balance of low friction, high strength, and wear resistance.
Understanding the Trade-offs
Modifying PTFE is not a universal upgrade; it is a targeted adjustment that involves clear compromises.
### Loss of Purity
The most obvious trade-off is purity. Filled PTFE grades are, by definition, not 100% pure PTFE, which can be a disqualifying factor for certain high-purity applications in the medical or semiconductor industries.
### Altered Chemical Resistance
While still highly resistant, the fillers themselves may not share PTFE's near-total chemical inertness. The modified material can become vulnerable to specific chemicals that might attack the filler, such as strong alkali solutions attacking glass fibers.
### Vulnerability to Radiation and Specific Elements
Like virgin PTFE, modified grades do not have good resistance to high-energy radiation, which can cause molecular breakdown. They also remain vulnerable to attack from agents like elemental fluorine and certain metal fluorides at high temperatures and pressures.
Selecting the Right PTFE for Your Application
Your choice must be driven by the most critical performance requirement of your project.
- If your primary focus is chemical purity or electrical insulation: Virgin PTFE is almost always the correct choice, as fillers compromise these core properties.
- If your primary focus is mechanical strength and wear resistance: A filled grade is necessary; glass-filled PTFE is a common starting point for improved durability.
- If your primary focus is static sealing in a corrosive environment: Virgin PTFE is likely sufficient and provides the best chemical resistance.
Ultimately, the decision to use a modified PTFE is a direct response to the mechanical limitations of its pure form.
Summary Table:
| Modified PTFE Grade | Key Fillers | Primary Property Enhancements | Common Applications |
|---|---|---|---|
| Glass-Filled PTFE | Glass Fibers | Improved wear resistance, compressive strength, rigidity | Bushings, bearings, seals, structural parts |
| Carbon-Filled PTFE | Carbon Particles | Excellent wear resistance, good thermal conductivity, some electrical conductivity | Mechanical seals, compressor rings, conductive parts |
| Advanced Filled PTFE | Synthetic Mica, Nanotubes | Unique balance of low friction, high strength, wear resistance | Specialized seals, high-performance components |
| Virgin PTFE | None (Pure) | Maximum chemical inertness, electrical insulation, purity | Chemical processing, electrical insulation, medical devices |
Need the Perfect PTFE Material for Your Application?
Choosing between virgin and modified PTFE is critical for performance and longevity. KINTEK specializes in manufacturing high-precision PTFE components—including custom seals, liners, and labware—for the semiconductor, medical, laboratory, and industrial sectors.
We help you navigate the trade-offs to select or fabricate the ideal material grade, ensuring your components meet exact mechanical, chemical, and thermal requirements. From prototypes to high-volume orders, our precision production and expertise deliver reliability.
Contact us today to discuss your project needs and get a quote: Reach out via our contact form

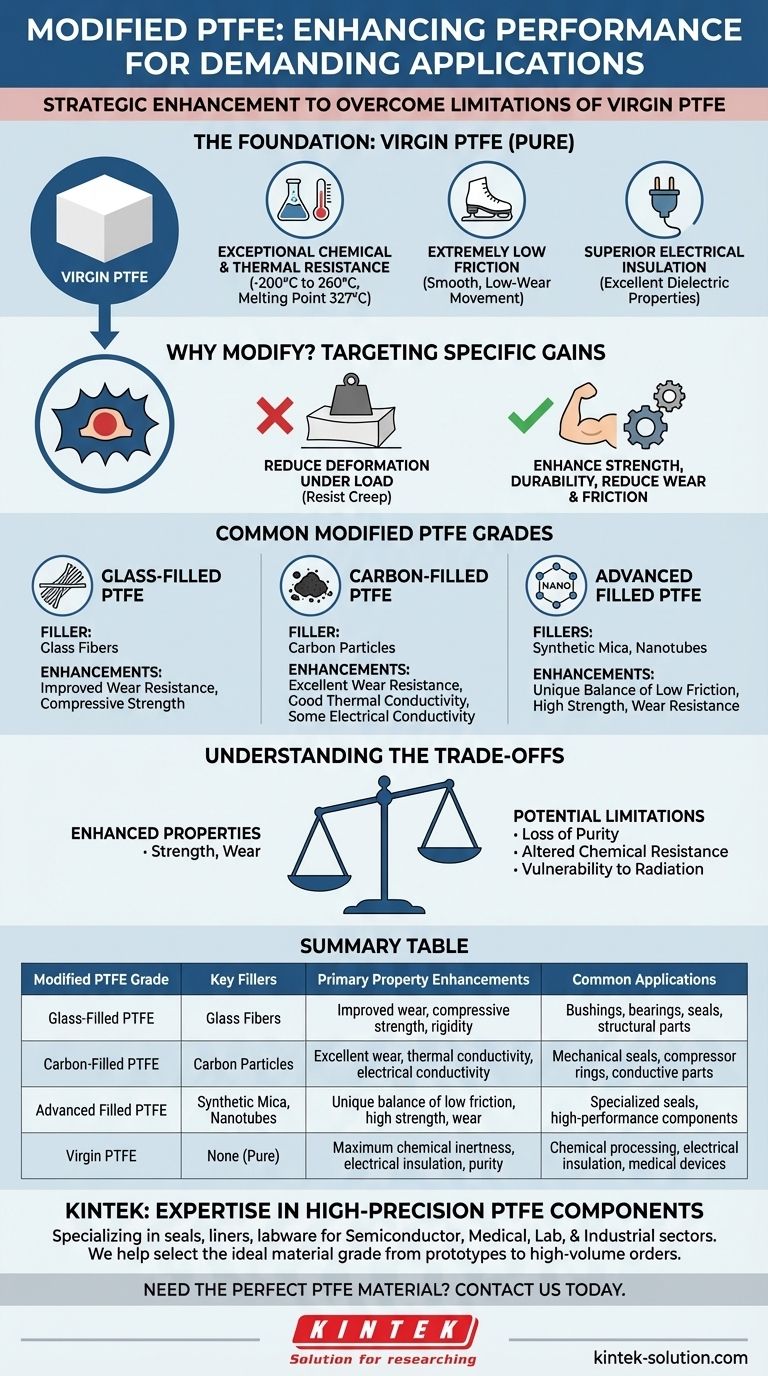

Visual Guide
