At its core, there are two primary categories of Polytetrafluoroethylene (PTFE) expansion joints: formed (pure) PTFE joints and lined (composite) PTFE joints. Formed joints, made entirely of PTFE with a set number of convolutions, are chosen for their supreme chemical purity and are common in pharmaceutical, food, and high-purity chemical processing. Lined joints, which feature a PTFE liner inside a more robust rubber or metal body, are used for higher-pressure applications in industries like power generation, oil and gas, and heavy chemical plants.
The critical decision is not simply choosing PTFE, but selecting the right construction. Your choice between a pure, formed PTFE joint and a lined, composite one depends entirely on balancing the need for ultimate chemical resistance against the system's pressure and mechanical stress requirements.
The Role of an Expansion Joint in a Piping System
Before comparing types, it is essential to understand the problem they solve. Industrial piping systems are not static; they are dynamic environments subject to constant change.
Absorbing Thermal Movement
Pipes expand when heated and contract when cooled. An expansion joint is a flexible connector designed to absorb this movement, preventing stress from building up and causing pipe or equipment failure.
Dampening Vibration
Pumps, motors, and compressors introduce vibration into a piping system. A PTFE expansion joint acts as a dampener, isolating vibrations and protecting sensitive equipment downstream.
Correcting Misalignment
Expansion joints can compensate for minor initial pipe misalignment, making installation easier and preventing the constant stress that a rigid, misaligned connection would create.
The Two Primary Types of PTFE Expansion Joints
The choice between a formed or lined joint is the most significant decision you will make. It dictates the joint's performance under pressure, its chemical compatibility, and its mechanical durability.
Formed (Pure) PTFE Expansion Joints
These joints are molded directly from pure PTFE, typically designed with two, three, or five convolutions (the "bellows") to provide flexibility.
Their primary advantage is unmatched chemical resistance and purity. Since the entire wetted surface is pure PTFE, they are ideal for systems where contamination is unacceptable or where extremely aggressive chemicals are present.
They are most commonly used in pharmaceutical manufacturing, food and beverage production, and high-purity chemical applications.
Lined (Composite) PTFE Expansion Joints
These joints are a hybrid construction. They consist of a chemically resistant PTFE liner on the inside, protected by an outer body made of a different material, such as rubber (EPDM, Neoprene) or metal.
This design combines the best of both worlds: the universal chemical resistance of PTFE on the inside and the pressure-handling and mechanical strength of the outer shell.
They are the standard choice for demanding industrial applications like chemical processing plants, power generation facilities, wastewater treatment, and oil and gas operations where both chemical exposure and high pressures are a concern.
Understanding the Trade-offs and Common Pitfalls
While highly effective, PTFE expansion joints are not without limitations. Understanding these trade-offs is crucial for ensuring system reliability and safety.
Pressure and Temperature Boundaries
Pure, formed PTFE has lower pressure ratings compared to lined joints. At elevated temperatures, PTFE's strength decreases, which can lead to "creep" under pressure. Always operate well within the manufacturer's specified pressure and temperature limits.
Vulnerability to Mechanical Damage
PTFE is a relatively soft material. Formed PTFE joints are more susceptible to physical damage from impact or abrasion than their metal- or rubber-reinforced counterparts. Proper shielding and careful handling are essential.
The Criticality of Proper Installation
The most common cause of premature failure is incorrect installation. Ensure pipes are properly aligned and anchored. Over-torquing bolts can damage the PTFE flange face, and failing to use control rods in high-pressure systems can lead to catastrophic failure.
Making the Right Choice for Your Application
Selecting the correct expansion joint requires matching the component's design to the specific demands of your piping system.
- If your primary focus is ultimate purity and corrosion resistance: A formed (pure) PTFE expansion joint is the correct choice, especially in low-to-moderate pressure systems.
- If your system involves high pressure, significant vibration, or risk of mechanical stress: A lined (composite) PTFE expansion joint provides the necessary structural integrity while retaining chemical inertness.
- If you need a general-purpose, robust solution for moderate chemicals: A lined joint often provides a wider safety margin and greater physical durability for most industrial applications.
Ultimately, choosing the right expansion joint is a critical engineering decision that ensures the safety, longevity, and integrity of your entire system.
Summary Table:
| Type | Key Features | Common Applications |
|---|---|---|
| Formed (Pure) PTFE | Supreme chemical purity, low pressure rating | Pharmaceutical, Food & Beverage, High-Purity Chemicals |
| Lined (Composite) PTFE | High pressure handling, robust construction | Power Generation, Oil & Gas, Heavy Chemical Plants |
Unsure which PTFE expansion joint is right for your application?
KINTEK specializes in manufacturing high-performance PTFE components, including custom expansion joints for the semiconductor, medical, laboratory, and industrial sectors. Our precision production and custom fabrication services—from prototypes to high-volume orders—ensure you get a solution perfectly tailored to your system's pressure, chemical, and purity requirements.
Contact our experts today for a consultation and ensure the longevity and safety of your piping system.

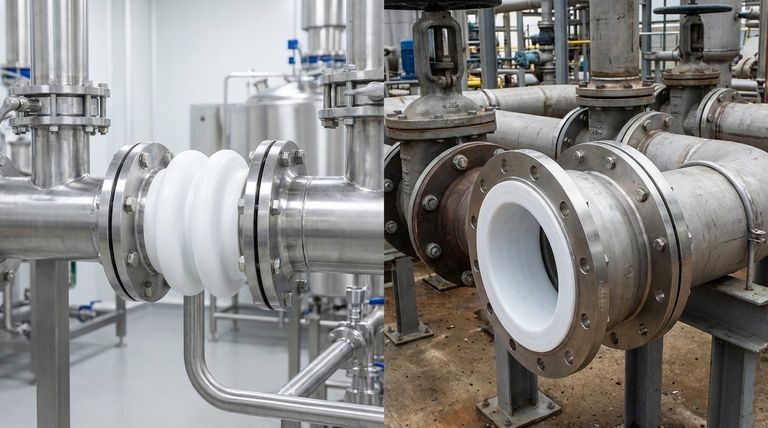

Visual Guide
