The short answer is: Sintering transforms compacted Polytetrafluoroethylene (PTFE) powder into a solid, functional material by fusing the particles together. The specific properties of the final part, such as hardness and flexibility, are determined almost entirely by the cooling rate used during this process.
The core principle to understand is that the cooling rate during sintering controls the material's crystallinity. Slow cooling creates a harder, denser, and more wear-resistant PTFE, while fast cooling results in a more flexible material with a longer flex-life.
The Sintering Process: From Powder to Solid
Sintering is the critical thermal cycle that gives a molded PTFE part its final, useful properties. Without it, the pre-formed part is just fragile, compressed powder.
What is Sintering?
Sintering is a process where PTFE, previously compressed into a shape, is heated to a temperature just above its gel point (around 360-380°C).
At this temperature, the individual PTFE particles fuse, or coalesce, into a single, void-free solid mass.
The Decisive Factor: Cooling Rate
While heating fuses the particles, the cooling phase is what locks in the final molecular structure and, therefore, the material's performance characteristics.
This is the primary variable an engineer can control to tailor the properties of the final component.
How Cooling Rate Governs PTFE Crystallinity
The difference between a hard PTFE bearing and a flexible PTFE diaphragm comes down to its internal structure, specifically its level of crystallinity.
Understanding Crystallinity in PTFE
Crystallinity refers to the degree of structural order in the polymer chains.
Highly crystalline regions are dense and orderly, like neatly stacked logs. Amorphous regions are disordered and tangled, like a pile of loose brush.
The Effect of Slow Cooling
When PTFE is cooled slowly, the long polymer chains have sufficient time and energy to align themselves into highly ordered, compact crystalline structures.
This process results in a material with high crystallinity.
The Effect of Fast Cooling (Quenching)
When PTFE is cooled rapidly (quenched in water, for example), the polymer chains are "frozen" in place before they can organize.
This traps them in a disordered, amorphous state, resulting in a material with low crystallinity.
Translating Crystallinity into Performance Properties
The level of crystallinity directly impacts the final mechanical and physical properties of the PTFE component.
Properties of High-Crystallinity PTFE (Slow Cooled)
A higher degree of crystalline structure leads to:
- Higher Density and Hardness
- Increased Tensile Strength and Stiffness
- Greater Wear Resistance
- Lower Permeability to gases and liquids
Properties of Low-Crystallinity PTFE (Fast Cooled)
A lower degree of crystalline structure leads to:
- Improved Flexibility and Flex-Life
- Higher Elongation (it can stretch more before breaking)
- Better Impact Strength and Toughness
- Increased Transparency
Understanding the Trade-offs
You cannot maximize all properties simultaneously. The choice of cooling rate forces a trade-off between competing characteristics.
Hardness vs. Flexibility
This is the most fundamental trade-off. A slow-cooled, high-crystallinity part will be stiff and hard, ideal for a seal or bearing. A fast-cooled, low-crystallinity part will be soft and flexible, ideal for a diaphragm.
Wear Resistance vs. Fatigue Life
High crystallinity provides excellent resistance to steady abrasive or sliding wear. However, low crystallinity provides superior resistance to failure from repeated bending and flexing (fatigue life).
Dimensional Stability vs. Toughness
The dense, ordered structure of high-crystallinity PTFE provides better dimensional stability under load (less creep). Conversely, the less-ordered structure of low-crystallinity PTFE is generally tougher and less prone to fracture from sudden impact.
Selecting the Right Process for Your Application
The optimal sintering cycle is determined entirely by the demands of the final application.
- If your primary focus is mechanical strength and wear resistance (e.g., bearings, seals, valve seats): Specify a slow cooling rate to achieve high crystallinity.
- If your primary focus is flexibility and fatigue life (e.g., diaphragms, bellows, flexible tubing): Specify a fast cooling rate (quenching) to achieve low crystallinity.
- If your primary focus is low permeability and chemical containment (e.g., tank liners, gaskets): Specify a slow cooling rate to produce a denser, less permeable material.
By understanding and controlling the sintering cycle, you can engineer PTFE's properties to meet the precise demands of your application.

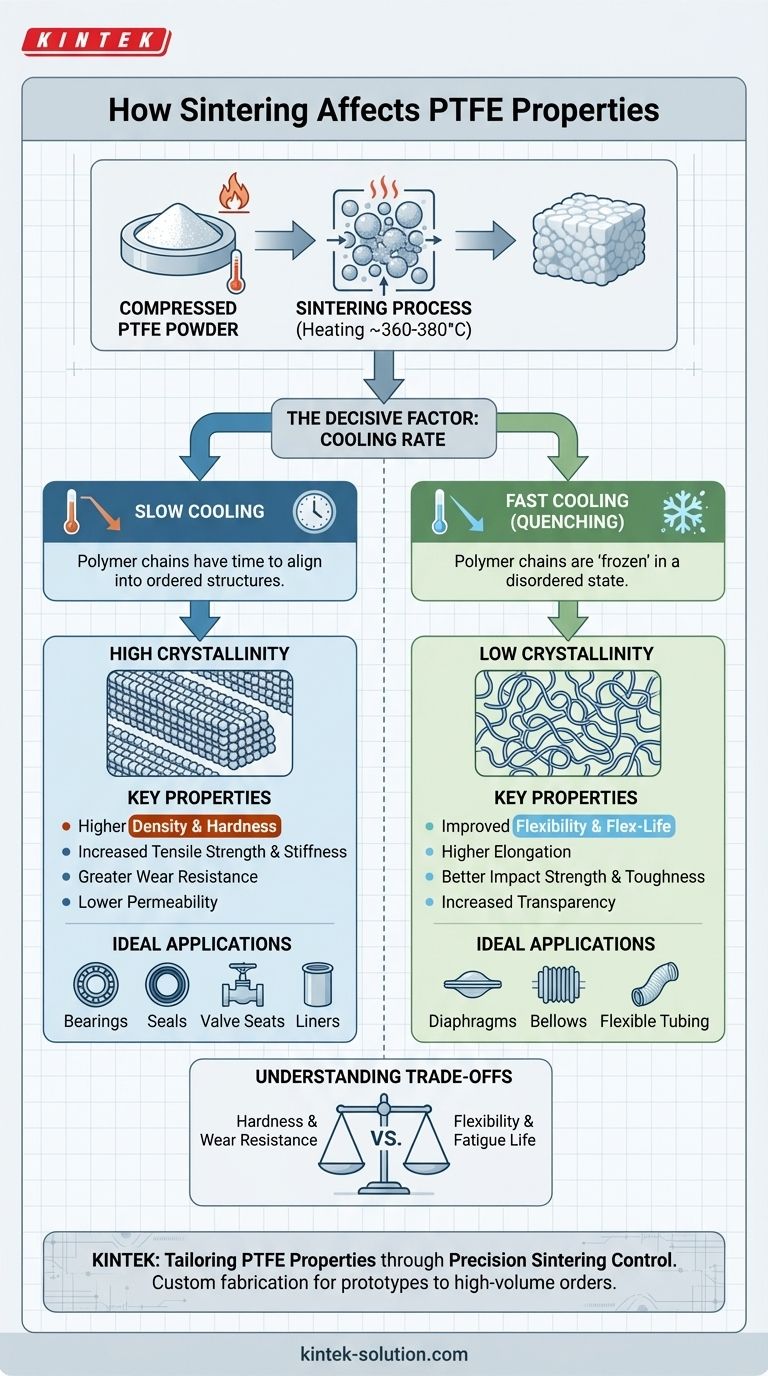

Summary Table:
| Cooling Rate | Crystallinity | Key Properties | Ideal For |
|---|---|---|---|
| Slow Cooling | High | Hard, Dense, Wear-Resistant, Low Permeability | Bearings, Seals, Valve Seats, Liners |
| Fast Cooling (Quenching) | Low | Flexible, High Flex-Life, Tough, High Elongation | Diaphragms, Bellows, Flexible Tubing |
