At its core, CNC turning PTFE involves shaping a rotating rod of the material using a stationary cutting tool. However, because PTFE is soft and has poor thermal conductivity, success requires a specialized approach using low cutting speeds, shallow cuts, and extremely sharp tools to prevent heat buildup, which can cause the material to deform and ruin dimensional accuracy.
The central challenge in machining PTFE is not cutting it, but controlling it. Its unique properties—softness, high thermal expansion, and hazardous dust—demand a process focused on minimizing heat, pressure, and airborne particles to achieve a precise and safe outcome.
The Mechanics of Turning PTFE
CNC turning PTFE follows a standard principle but requires specific adjustments to accommodate the material's unique characteristics. The goal is to shear the material cleanly without introducing heat or stress.
The Fundamental Process

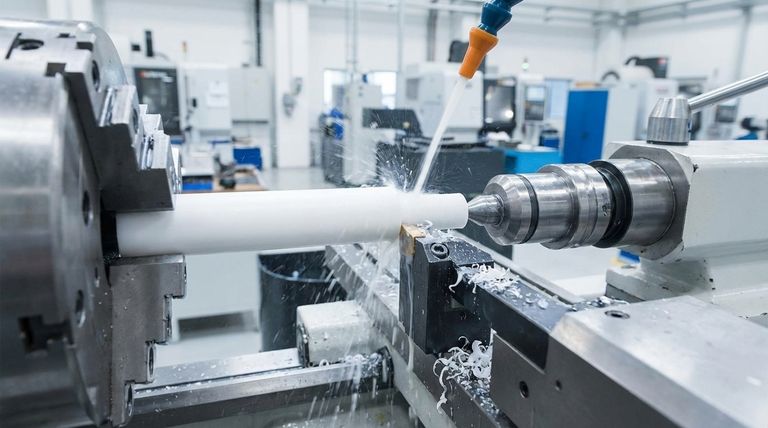

The process begins with a solid rod of PTFE stock being clamped in a CNC lathe's chuck. As the chuck spins the material at a programmed speed, a cutting tool moves along its length and across its face to remove material and create the desired shape.
The Critical Role of Heat Management
PTFE is an excellent thermal insulator. This means that heat generated at the point of the cut does not dissipate quickly through the material.
This trapped heat is the primary cause of failure. It can cause the PTFE to expand significantly during the cut, leading to an inaccurate final dimension once the part cools. In severe cases, it can melt the material or cause it to become gummy, resulting in a poor surface finish.
Key Machining Parameters
To combat heat buildup, machinists use a specific set of parameters. Low cutting speeds and shallow depths of cut are non-negotiable, as they minimize the friction and energy introduced into the part. A continuous coolant flood can also be used to actively remove heat and control dust.
Essential Precautions and Best Practices
Beyond managing heat, turning PTFE successfully requires careful attention to safety, tooling, and how the material is handled.
Operator Safety: The Hazard of Micro-Dust
When machined dry, PTFE produces a fine, lightweight dust. These micro-particles can hang in the air and are hazardous if inhaled.
Therefore, it is critical to machine PTFE under a constant coolant stream to suppress dust or, if machining dry, to use a powerful dust collection system and have the operator wear a protective mask.
Tool Selection and Condition
The cutting tools used for PTFE must be extremely sharp, often with a high positive rake and a polished surface. A sharp tool cleanly shears the material, whereas a dull tool will tend to push or plow through it. This plowing action increases friction, generates more heat, and can deform the part.
Workpiece Clamping
Because PTFE is very soft, it can be easily crushed or distorted by the chuck jaws. Clamping pressure must be carefully controlled to be just firm enough to hold the workpiece securely without deforming it, which would lead to an out-of-round final part.
Understanding the Trade-offs and Design Challenges
Designing parts for PTFE requires an understanding of its inherent material behaviors, which directly impact the final product's dimensional stability and performance.
Accounting for Thermal Expansion
PTFE has a very high coefficient of thermal expansion, meaning it expands and contracts significantly with temperature changes. A part machined to a tight tolerance in a cool shop may be out of spec in a warmer operating environment. Designers must account for this behavior and specify tolerances accordingly.
Managing Stress Relaxation and Creep
PTFE is prone to stress relaxation, or "creep." If a part is under constant pressure (like a seal or a bearing), it can slowly deform over time. This must be considered during the design phase to ensure long-term stability and performance.
Achieving Tight Tolerances
The combination of softness, thermal expansion, and stress relaxation makes holding extremely tight tolerances a significant challenge. Achieving precision requires a holistic approach that includes careful process control during machining and intelligent design that accommodates the material's natural tendencies.
Making the Right Choice for Your Goal
Applying these principles correctly depends on the primary objective for your component.
- If your primary focus is dimensional accuracy: Prioritize heat management above all by using low speeds, sharp tools, and coolant, and factor thermal expansion into your design tolerances.
- If your primary focus is operator safety: Mandate the use of a coolant flood or proper ventilation and personal protective equipment (PPE) to eliminate the risk of inhaling PTFE micro-dust.
- If your primary focus is post-machining integrity: Design features with radii and corner breaks, and use proper installation tools to avoid nicking or gouging the soft material during final assembly.
By respecting PTFE's unique properties throughout the design and machining process, you can reliably translate its advantages into a high-performance finished component.
Summary Table:
| Key Aspect | Critical Consideration for PTFE |
|---|---|
| Heat Management | Use low speeds, shallow cuts, and coolant to prevent deformation. |
| Tooling | Extremely sharp tools with a high positive rake are mandatory. |
| Safety | Coolant or dust collection is required to control hazardous micro-dust. |
| Clamping | Controlled pressure is needed to avoid crushing the soft material. |
| Design | Account for high thermal expansion and stress relaxation (creep). |
